In the field of modern industrial production and logistics, the efficiency and safety of material handling directly affect the production benefits and operating costs of enterprises. As an innovative material handling equipment, the Modular Crane plays an important role in many work scenarios with its unique design and excellent performance, and has become a powerful assistant to improve production efficiency and ensure operational safety.
Unique design to adapt to various space requirements

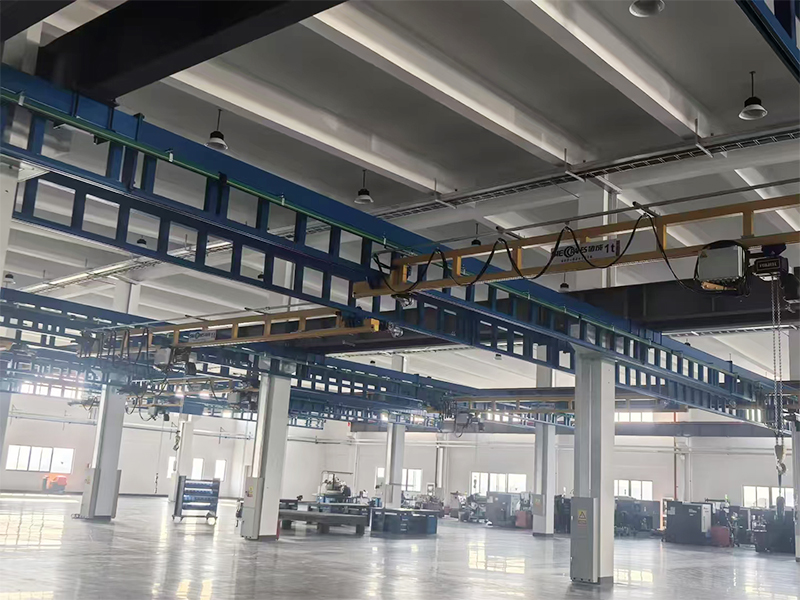

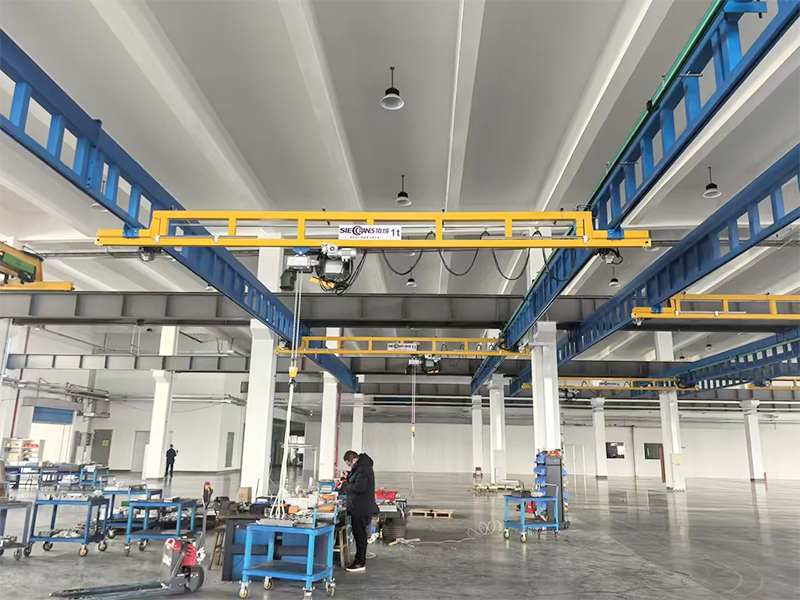

In many work areas, due to space limitations or requirements for smooth operation, traditional support structures are not allowed. At this time, the modular beam Suspension Crane shows its incomparable advantages. It cleverly relies on the ceiling structure and does not require additional support on the ground, freeing up valuable space for the work area and ensuring that the operation is not hindered in any way.
The crane system is based on a steel structure, which is sturdy and durable, with excellent load-bearing capacity, a lifting range of 75-2000 kg, and a total main beam length of up to 10 meters. Customers can flexibly install multiple main beams on a set of fixed tracks according to actual needs. This modular design greatly improves production efficiency and makes material handling more efficient and orderly.
Compared with traditional beam cranes, modular cranes have achieved a major breakthrough in design. The closed track design significantly reduces the handling force, requiring only one-third of the traditional crane, greatly reducing the labor intensity of the operator. The truss track design allows a larger span, more flexible installation layout, and can adapt to work areas of different shapes and sizes, providing more possibilities for the company's space planning.
Excellent features, casting efficient and safe choice
The modular crane has many impressive product features, making it stand out in the field of material handling.
Its prefabricated standard modular design brings great convenience to the expansion and relocation of enterprises. When the company needs to expand the production scale or adjust the production layout, the crane can be easily disassembled and reassembled, quickly adapt to the new working environment, saving a lot of time and cost.
The crane can be installed on any ordinary 15 cm thick reinforced concrete floor, with low requirements for the installation environment, further expanding its application range. The closed rail design effectively reduces the pollution of dirt and dust, reduces the maintenance cost of the equipment, and prolongs the service life. The rigid fixed rail is more conducive to load positioning and improves the accuracy and stability of material handling.
High-strength disposable cold-rolled rails are another highlight of modular cranes. This type of rail is light in weight, high in precision, and has a smooth rolling surface, which greatly reduces the running resistance of the trolley rollers, making the crane run more smoothly and efficiently. At the same time, modular cranes have a wide range of applicability and can be used in a variety of material handling environments such as component assembly, processing, pallet transportation, injection molding, warehouse loading and unloading, processing equipment maintenance, truck service centers, etc., providing comprehensive material handling solutions for enterprises in different industries.
For a single work unit, modular cranes are extremely economical. Its easy installation can significantly reduce installation time and costs, allowing enterprises to start production faster. In addition, it can improve operator satisfaction, achieve a safe operating environment, and help enterprises achieve a rapid return on investment by improving production efficiency.
Widely used to help multiple industries operate efficiently
With its excellent performance and wide applicability, modular cranes have been widely used in multiple industries.
In the field of component assembly and processing, modular cranes can accurately transport various parts, improve the accuracy and efficiency of assembly, and reduce errors and damage caused by manual handling. During pallet transportation and warehouse loading and unloading, it can quickly and efficiently complete the handling and stacking of goods, improve the storage density and cargo turnover rate of the warehouse.
In the injection molding industry, the Combination Crane can easily carry molds and molded products to ensure the continuity and stability of the production process. In terms of processing equipment maintenance, it can help maintenance personnel to quickly and safely carry equipment parts, shorten equipment downtime, and improve equipment utilization.
In truck service centers, combination cranes can be used for vehicle repair and maintenance, conveniently carry auto parts and tools, and improve maintenance efficiency and service quality.
Terminology analysis, in-depth understanding of equipment principles
In order to better understand and use combination cranes, it is essential to understand some key terms.
Axial load refers to the total vertical force acting on the supporting structure, and its calculation formula is axial load = (total weight of the crane) + (design factor × lifting weight). This parameter is of great significance to ensure the safety and stability of the supporting structure.
The main beam length is the total length of the main beam, but it should be noted that the working length of the main beam or the coverage of the hook on the beam is less than the total length of the main beam. The buffer is placed between two beams or trolleys in the fixed track to prevent concentrated overloads between the lifting points, limit the minimum distance between beams or trolleys and ensure safe operation of the equipment.
The columns are the "legs" of the modular self-erecting crane, made of square tubes, on which the crane is supported. Deflection is the difference in track deflection between an empty crane and a fully loaded crane, usually calculated in millimeters. The deflection of the beam crane designed by Gorbo is L/450, where L = support center distance or span, which reflects the degree of deformation of the crane track and is crucial to ensure the operating accuracy and stability of the crane.
The crossbeam is the horizontal beam in the support structure of the modular self-erecting crane, consisting of two back-to-back channels, where the fixed track is suspended. The overall height (OAH) is the distance from the ground to the highest point of the crane (including metalwork), which is important for the installation and space planning of the equipment.
Span (girder) is the distance between the center lines of the fixed rails and must be distinguished from the overall girder length (OAL), which is longer than the span. The calculation formula (for most cranes) is Span = {Girder length - (2 x Girder cantilever length)}. Support center is the distance between the center lines of two columns or hangers on the fixed rails, which determines which type of rails need to be used.
Support structure For modular self-erecting cranes, it refers to the support assembly, also known as the "door" or "terminal frame", which consists of columns and beams; for modular suspension crane systems, it refers to the top, including trusses, longitudinal beams, columns, etc., from which the crane is suspended. Crane trolley height (TS) On self-erecting cranes, it refers to the height from the top of the crane trolley pin (under which the crane is suspended) to the ground. This parameter is important for the installation and operation of the equipment.
Modular cranes have become indispensable material handling equipment in modern industrial production and logistics due to their unique design, excellent performance and wide application. With the continuous advancement of technology and the changing market demand, combination cranes will continue to innovate and improve, providing enterprises with more efficient, safe and intelligent material handling solutions, helping enterprises gain greater advantages in the fierce market competition.
